This photocell is adaptable to multiple computers in the market, robust and reliable

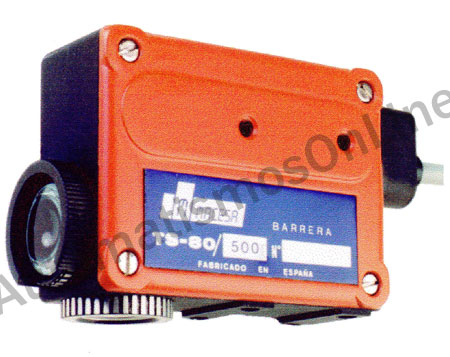

marca MACESA TS-80/500I

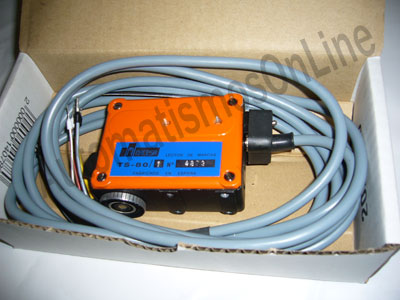

VIEW AND PACKING OF THE LENS
MACESA TS-80/500I
TS/500I Photocell pictures
MACESA brand TS-80/500I view of the inside, plug, hybrid and cell inside.
TECHNICAL INFORMATION FOR THE PHOTOCELL
READER BARRIER FOR REFLECTION
The Photocell TS-80/500I works by reflection to a distance of 500 mm up to catadrioptic reflector.
The infrared emission is modulated together with incorporating aplificador (hybrid loop) provides high immunity to parasites, temperature changes, etc ...
The housing is aluminum alloy injected under pressure and the optical is of crystal, two conditions that provide robust and fairly immune to dust and dirt conditions that make it suitable for working on heavy machinery (large mechanical stress, eg. Punch paper and cardboard) and conditions quite harsh.
The degree of protection IP 67.
In three of their faces have holes for M5 Rocs magnets.
Feeder is 10 to 30 Vdc. Its current output is NPN max. 100 mA.
This head is not provided with a mirror reflector.
Although you can include on your order.
